McLaren 570GT 6 - CLOSURES - 6.7 - SIDE MIRRORS piezas

Encuentre su pieza

6 - CLOSURES - 6.7 - SIDE MIRRORS of McLaren McLaren 570GT

Ver todo

McLaren 570GT - 6 - CLOSURES - 6.7 - SIDE MIRRORS

Consulte el despiece para encontrar la pieza que busca:

Puede reposicionar el diagrama arrastrándolo
Puede acercar y alejar el diagrama desplazándose, pellizcando o utilizando el botón and buttons

Puede hacer clic en una zona activa del diagrama de piezas para localizar la pieza en la tabla

Clave de pieza

IN

EN STOCK

AS

PRONTO

TO

Para pedir

PE

SOLICITAR INFORMACIÓN

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	11A8450CP	SCALP CARBON RH	Consulte	Para pedir
	11A8449CP	Scalp - Painted - RH	€64.61	Para pedir
	11A8452CP	SCALP CARBON LH	Consulte	Para pedir

...and 1 more part variants. See table on right for more details.

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	11A8453CP	FRAME - DOOR MIRROR GLASS - RH	€86.14	Para pedir
	11A8454CP	FRAME - DOOR MIRROR GLASS - LH	€86.14	Para pedir

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	00RA599	SCREW - PAN HEAD - TORX - M3.5X0.6X12-10.9-84	Consulte	Para pedir

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	11A8455CP	MOTOR - DOOR MIRROR GLASS - RH	€111.99	Para pedir
	11A8456CP	MOTOR - DOOR MIRROR GLASS - LH	€111.99	Para pedir

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	00RA491	SCREW - TORX - 3X20	Consulte	Para pedir

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	00RA363	SCREW - TORX - 4X12	Consulte	Para pedir

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	11A8446CP	ACTUATOR - DOOR MIRROR GLASS	€120.62	Para pedir

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	00RA442	SCREW - TORX - 3X38	Consulte	Para pedir

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	11A8430CP	MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - RH	Consulte	Para pedir
	11A8426CP	MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - CONVEX - RH	Consulte	Para pedir
	11A8438CP	MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - FLAT - LH	Consulte	Para pedir

...and 3 more part variants. See table on right for more details.

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	11A6479CP	Side Repeater - Mirror Mounted - RH	€1,274.61	Para pedir
	11A6480CP	Side Repeater - Mirror Mounted - LH	€577.82	Para pedir

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	00RA525	SCREW - POZI - 2.5X8MM	Consulte	Para pedir

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	11A8416CP	SCALP - LOWER - UNPAINTED - RH	€51.69	Para pedir
	11A8417CP	SCALP - LOWER - UNPAINTED - LH	€51.69	Para pedir

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	13A4871CP	SEAL - DOOR MIRROR - MOUNT - RH	€39.08	Para pedir
	13A4869CP	SEAL - DOOR MIRROR - MOUNT - LH	€39.08	Para pedir

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	13A4872CP	BASE COVER - DOOR MIRROR - UPPER - LH	€43.07	Para pedir
	13A4873CP	BASE COVER - DOOR MIRROR - UPPER - RH	€43.07	Para pedir

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	13A4911CP	INTERNAL ARM - DOOR MIRROR - RH	€146.47	Para pedir
	13A4912CP	INTERNAL ARM - DOOR MIRROR - LH	€146.47	Para pedir

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	00RA313	SCREW - M6X16 - HEX - SILVER	Consulte	Para pedir

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	13A2058CP	WIRING HARNESS - DOOR MIRROR - RH	€103.38	Para pedir
	13A2052CP	WIRING HARNESS - DOOR MIRROR - LH	€103.38	Para pedir

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	13A2055CP	COVER - DOOR MIRROR BASE - LOWER - RH	€34.45	Para pedir
	13A2049CP	COVER - DOOR MIRROR BASE - LOWER - LH	€34.45	Para pedir

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	00RA140	SCREW - 3X8 - TORX	Consulte	Para pedir

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	13A4870CP	SEAL - DOOR MIRROR - GASKET - LOWER - RH	€30.41	Para pedir
	13A4868CP	SEAL - DOOR MIRROR - GASKET - LOWER - LH	€30.41	Para pedir

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	00RB059	CLIP CONNECTOR - TRW	Consulte	Para pedir

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	00RA374	SCREW - TORX - 3.5X12	Consulte	Para pedir

Foto	Nº de pieza	Descripción	Precio (cada uno)	Existencias
	13AA570CP	DOOR MIRROR - COMPLETE - CARBON - CHINA ONLY - LH	€3,514.99	Para pedir
	13AA564CP	DOOR MIRROR - COMPLETE - CARBON - CHINA ONLY - RH	Consulte	Para pedir
	13AA552CP	DOOR MIRROR - COMPLETE - UNPAINTED - CHINAONLY-RH	Consulte	Para pedir

...and 1 more part variants. See table on right for more details.

Ver todo

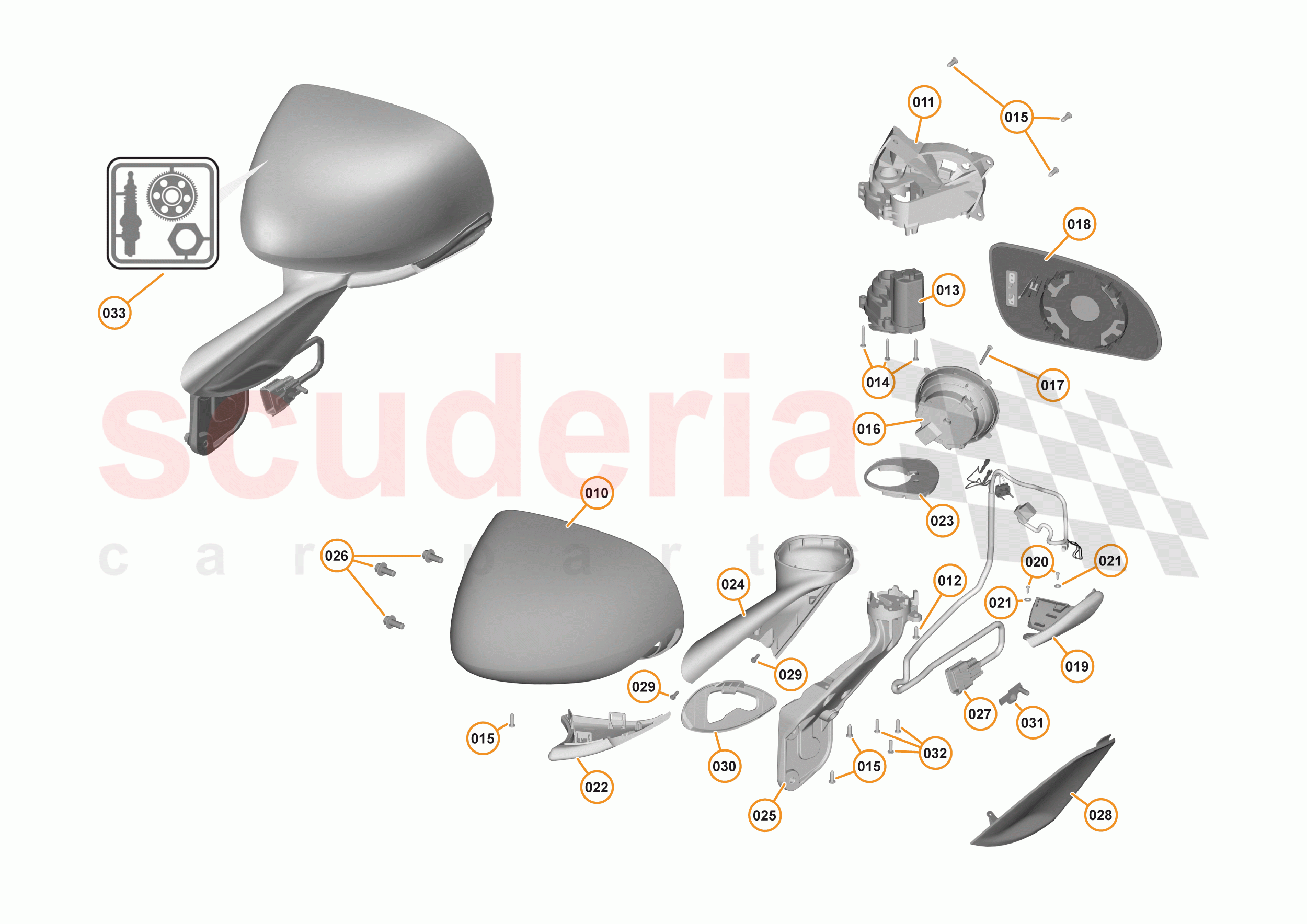

6 - CLOSURES - 6.7 - SIDE MIRRORS of McLaren McLaren 570GT

Diagrama Pulse para ampliar

0 Recambios (€0.00)

Advertencia: Se pueden seleccionar múltiples variantes de la misma pieza para los artículos:

	#	Pieza Número	Descripción de la pieza	Detalles de la pieza	Precio (cada uno)	Cantidad en Diagrama	Pedido Cantidad	Añadir a la cesta
	010	11A8450CP	SCALP CARBON RH	11A8450CP SCALP CARBON RH	-	1		Enquire
	010	11A8449CP	Scalp - Painted - RH	11A8449CP Scalp - Painted - RH	€64.61	1
	010	11A8452CP	SCALP CARBON LH	11A8452CP SCALP CARBON LH	-	1		Enquire
	010	11A8451CP	Scalp - Painted - LH	11A8451CP Scalp - Painted - LH	€64.61	1
	011	11A8453CP	FRAME - DOOR MIRROR GLASS - RH	11A8453CP FRAME - DOOR MIRROR GLASS - RH	€86.14	1
	011	11A8454CP	FRAME - DOOR MIRROR GLASS - LH	11A8454CP FRAME - DOOR MIRROR GLASS - LH	€86.14	1
	012	00RA599	SCREW - PAN HEAD - TORX - M3.5X0.6X12-10.9-84	00RA599 SCREW - PAN HEAD - TORX - M3.5X0.6X12-10.9-84	-	2		Enquire
	013	11A8455CP	MOTOR - DOOR MIRROR GLASS - RH	11A8455CP MOTOR - DOOR MIRROR GLASS - RH	€111.99	1
	013	11A8456CP	MOTOR - DOOR MIRROR GLASS - LH	11A8456CP MOTOR - DOOR MIRROR GLASS - LH	€111.99	1
	014	00RA491	SCREW - TORX - 3X20	00RA491 SCREW - TORX - 3X20	-	6		Enquire
	015	00RA363	SCREW - TORX - 4X12	00RA363 SCREW - TORX - 4X12	-	12		Enquire
	016	11A8446CP	ACTUATOR - DOOR MIRROR GLASS	11A8446CP ACTUATOR - DOOR MIRROR GLASS	€120.62	2
	017	00RA442	SCREW - TORX - 3X38	00RA442 SCREW - TORX - 3X38	-	2		Enquire
	018	11A8430CP	MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - RH	11A8430CP MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - RH	-	1		Enquire
	018	11A8426CP	MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - CONVEX - RH	11A8426CP MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - CONVEX - RH	-	1		Enquire
	018	11A8438CP	MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - FLAT - LH	11A8438CP MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - FLAT - LH	-	1		Enquire
	018	11A8442CP	MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - LH	11A8442CP MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - LH	-	1		Enquire
	018	11A8422CP	MIRROR GLASS ASSEMBLY - CONVEX - RH	11A8422CP MIRROR GLASS ASSEMBLY - CONVEX - RH	€286.36	1
	018	11A8434CP	MIRROR GLASS ASSEMBLY - CONVEX - LH	11A8434CP MIRROR GLASS ASSEMBLY - CONVEX - LH	€286.36	1
	019	11A6479CP	Side Repeater - Mirror Mounted - RH	11A6479CP Side Repeater - Mirror Mounted - RH	€1,274.61	1
	019	11A6480CP	Side Repeater - Mirror Mounted - LH	11A6480CP Side Repeater - Mirror Mounted - LH	€577.82	1
	020	00RA525	SCREW - POZI - 2.5X8MM	00RA525 SCREW - POZI - 2.5X8MM	-	4		Enquire
	022	11A8416CP	SCALP - LOWER - UNPAINTED - RH	11A8416CP SCALP - LOWER - UNPAINTED - RH	€51.69	1
	022	11A8417CP	SCALP - LOWER - UNPAINTED - LH	11A8417CP SCALP - LOWER - UNPAINTED - LH	€51.69	1
	023	13A4871CP	SEAL - DOOR MIRROR - MOUNT - RH	13A4871CP SEAL - DOOR MIRROR - MOUNT - RH	€39.08	1
	023	13A4869CP	SEAL - DOOR MIRROR - MOUNT - LH	13A4869CP SEAL - DOOR MIRROR - MOUNT - LH	€39.08	1
	024	13A4872CP	BASE COVER - DOOR MIRROR - UPPER - LH	13A4872CP BASE COVER - DOOR MIRROR - UPPER - LH	€43.07	1
	024	13A4873CP	BASE COVER - DOOR MIRROR - UPPER - RH	13A4873CP BASE COVER - DOOR MIRROR - UPPER - RH	€43.07	1
	025	13A4911CP	INTERNAL ARM - DOOR MIRROR - RH	13A4911CP INTERNAL ARM - DOOR MIRROR - RH	€146.47	1
	025	13A4912CP	INTERNAL ARM - DOOR MIRROR - LH	13A4912CP INTERNAL ARM - DOOR MIRROR - LH	€146.47	1
	026	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER	-	6		Enquire
	027	13A2058CP	WIRING HARNESS - DOOR MIRROR - RH	13A2058CP WIRING HARNESS - DOOR MIRROR - RH	€103.38	1
	027	13A2052CP	WIRING HARNESS - DOOR MIRROR - LH	13A2052CP WIRING HARNESS - DOOR MIRROR - LH	€103.38	1
	028	13A2055CP	COVER - DOOR MIRROR BASE - LOWER - RH	13A2055CP COVER - DOOR MIRROR BASE - LOWER - RH	€34.45	1
	028	13A2049CP	COVER - DOOR MIRROR BASE - LOWER - LH	13A2049CP COVER - DOOR MIRROR BASE - LOWER - LH	€34.45	1
	029	00RA140	SCREW - 3X8 - TORX	00RA140 SCREW - 3X8 - TORX	-	4		Enquire
	030	13A4870CP	SEAL - DOOR MIRROR - GASKET - LOWER - RH	13A4870CP SEAL - DOOR MIRROR - GASKET - LOWER - RH	€30.41	1
	030	13A4868CP	SEAL - DOOR MIRROR - GASKET - LOWER - LH	13A4868CP SEAL - DOOR MIRROR - GASKET - LOWER - LH	€30.41	1
	031	00RB059	CLIP CONNECTOR - TRW	00RB059 CLIP CONNECTOR - TRW	-	2		Enquire
	032	00RA374	SCREW - TORX - 3.5X12	00RA374 SCREW - TORX - 3.5X12	-	6		Enquire
	033	13AA570CP	DOOR MIRROR - COMPLETE - CARBON - CHINA ONLY - LH	13AA570CP DOOR MIRROR - COMPLETE - CARBON - CHINA ONLY - LH	€3,514.99	1
	033	13AA564CP	DOOR MIRROR - COMPLETE - CARBON - CHINA ONLY - RH	13AA564CP DOOR MIRROR - COMPLETE - CARBON - CHINA ONLY - RH	-	1		Enquire
	033	13AA552CP	DOOR MIRROR - COMPLETE - UNPAINTED - CHINAONLY-RH	13AA552CP DOOR MIRROR - COMPLETE - UNPAINTED - CHINAONLY-RH	-	1		Enquire
	033	13AA558CP	DOOR MIRROR - COMPLETE - UNPAINTED - CHINAONLY-LH	13AA558CP DOOR MIRROR - COMPLETE - UNPAINTED - CHINAONLY-LH	€585.92	1
